智能伺服電流控扭槍型扳手X2
伺服電機、自由編程、LED提示燈、錯誤提示、鎖附參數、簡易安裝
立即咨詢
技術參數
| 型號 | 扭力范圍 | 空載轉速 | 輸入電壓 | 重量 | 標準批頭 | |
| 槍型扳手 | Kgf.cm | N.m | ||||
| SD-NC350T-AB-X2 | 5-35 | 0.5-3.5 | 50-2500r.p.m | 48V | 1050g | 1/4-Hex |

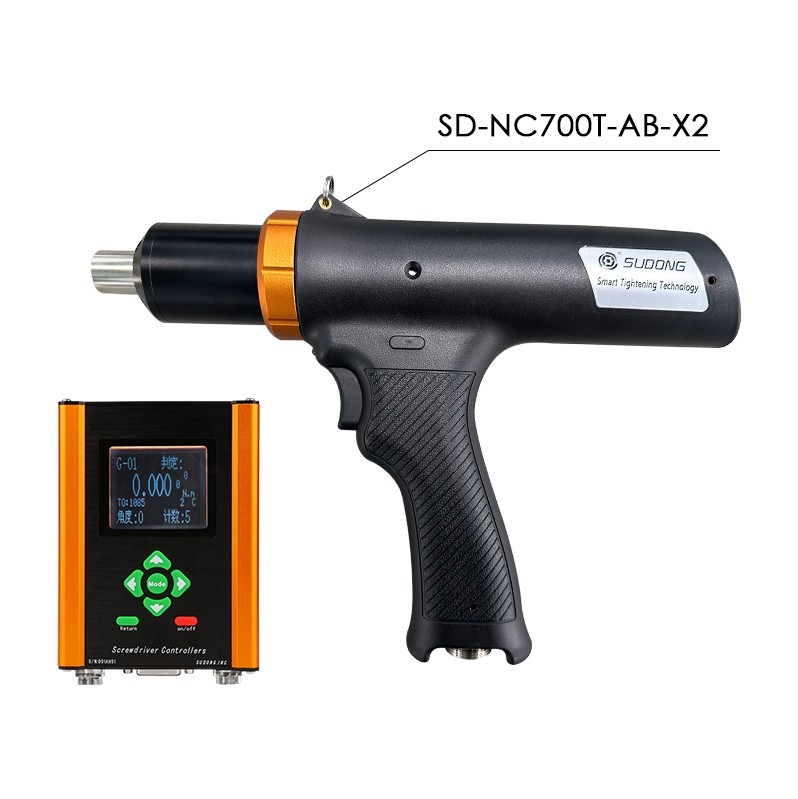

| SD-NC700T-AB-X2 | 10-70 | 1-7 | 50-1400r.p.m | 1/4-Hex | ||

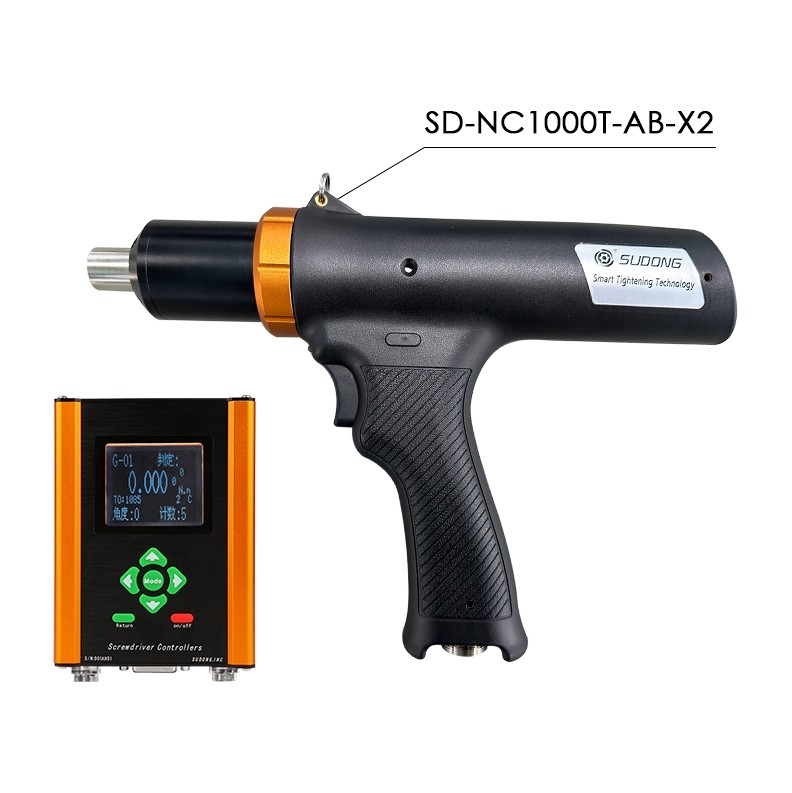

| SD-NC1000T-AB-X2 | 20-100 | 2-10 | 50-1000r.p.m | 1150g | 1/4-Hex | |
| SD-NC1500T-AB-X2 | 30-150 | 3-15 | 50-800r.p.m | 1/4-Hex | ||
| SD-NC2500T-AB-X2 | 50-250 | 5-25 | 50-500r.p.m | 1/4-Hex | ||
| SD-NC4000T-AW-X2 | 90-400 | 9-40 | 50-300r.p.m | 1300g | 3/8-Hex | |
| SD-NC6500T-AW-X2 | 130-650 | 13-65 | 50-200r.p.m | 3/8-Hex | ||
| 可選扳手輸出頭按需定制 | ||||||
